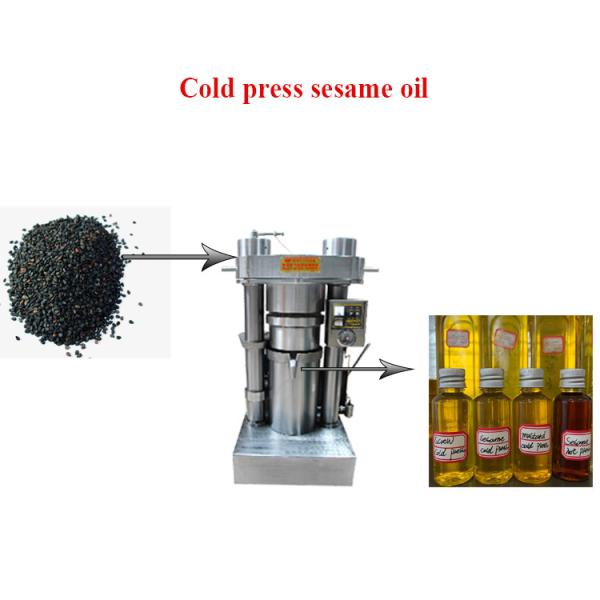

High pressure hydraulic making sesame olive oil pressing machinery
Our high pressure hydraulic making sesame olive oil pressing machinery parameter and application. It can press kinds of oil seeds, like sesame, coconut, olive, perilla seeds, walnut and etc.
Where are our machines can be used?
1. Pressing oil line:
If you are the oil manufacturer, you need a pressing oil line, our machine also is suitable for you.( We also can provide a whole line for you.)
2. Portable pressing oil:
Our machine is small, if you need pressing oil and sell it directly, our hydraulic machine also suitable for you. You can take it anywhere you want to go.
How do our machines work?
This machine applied the our new supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety. High precision structure hydraulic box can over higher pressure. Separately and more perfect oil line technoloty applied, keep the press kettle strong enough and increase the oil rate.
Parameter of our machines:
We also have other models for your choose, if you are interested anyone, please contact us freely.
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
| Capacity (kg/batch) | 4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
| Power (3 /single phase) | 1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
| Package Size(m) | 0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
| Capacity (Kg/24h) | 190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
Detail show
High oil rate reasons:

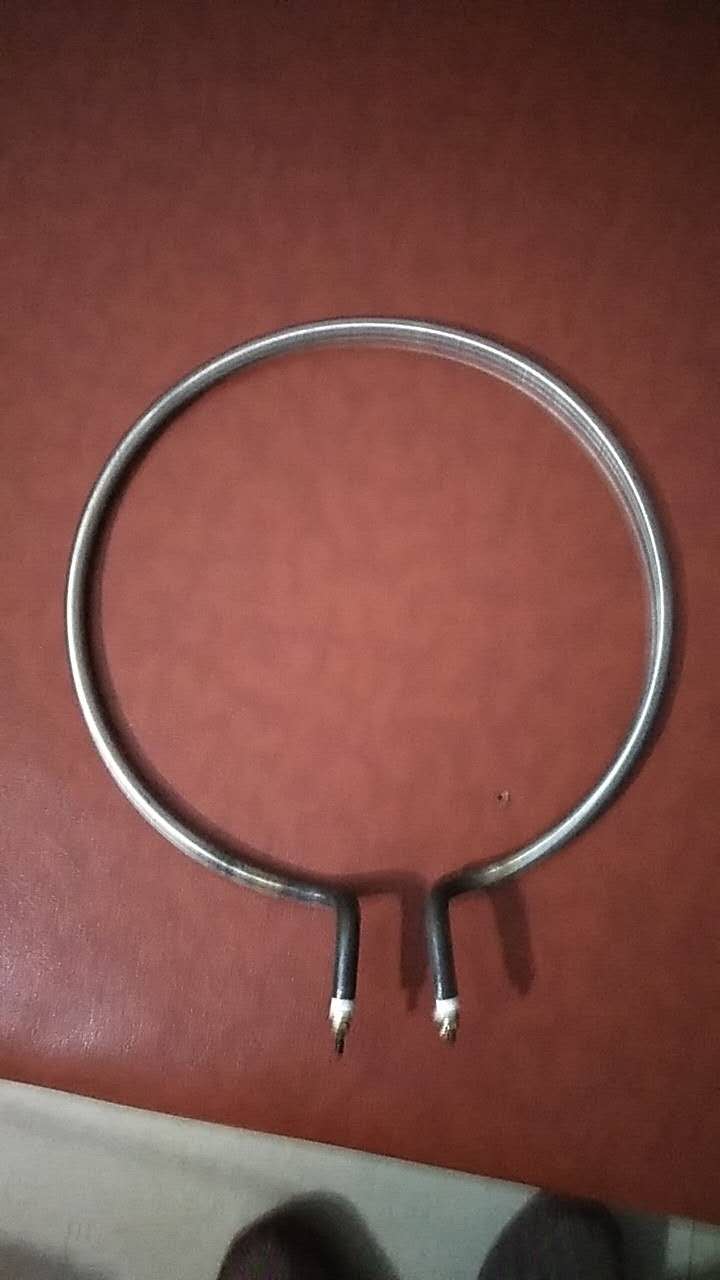

Internal temperature
Internal temperature control parts to solve the problem of low oil yield in winter (the normal machine's oil yield will lower in winter).
Oil line
The oil line is precise, it will filter the residue and oil out is quick so can you get more oil.
Solid piston
Our piston is solid it can provide stronger power to press raw material.
Hydrualic tank
Our machine maximum working pressure is 60Mpa, is larger than other machines, hydraulic tank can provide stronger power to press raw material.
The Consumables of our hydraulic machine:
Our service
1. Pre-sale service:
We offer different solution for different request and material.
Factory view accepted.
Test machine accepted.
7x24 hours online service.
2. After sale service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
