Stainless steel oil filter machine 150 oil filter press for small type
1. Plate frame filter presses are used in industrial production to achieve solid and liquid separation.
2. Plate frame filter presses are suspension solid and liquid two-phase separation applications in industries such as chemical, ceramic, petroleum, pharmaceutical, food, and smelting.
3. It is also suitable for wastewater treatment in the industrial filtration industry;
4. Easy operation and maintenance, safe and reliable operation.
Machine principle:
1. Used for the separation of solids and liquids.
2. The mud cake filtered by the filter press has a higher solid content and excellent separation effect.
3. The basic principle of solid-liquid separation is that the mixed liquid flows through the filter medium (filter cloth), the solid stays on the filter cloth, and gradually accumulates on the filter cloth to form a filter cake.
4. The filtrate partially permeates through the filter cloth, becoming a clear liquid without solids.
How to work:
Turn on the filter switch firstly, when the motor rotates, it will drive the pump to work, the pressure of the pump will pump the edible oil into the pipe, and then filter the edible oil through the 10-layer plate frame. then the final oil will come out.
Machine parameter:
| Model | LW-150 |
| Filter area | 0.17㎡ |
| Plate QTY | 10pcs |
| Filter cloth size for plate | 150*150mm |
| Flowrate | 1.5T/h |
| Filtering Precision | 0.8μm |
| Filter pressure | 1-2MPa |
| Motor power | 380V 5.5kw |
| Dimensions | 800*300*800mm |
| Weight | 100kg |
| Filter media | Filter paper/ filter cloth |
Machine advange:
1, this machine is stailess steel materials for cooking oil.
2, the operate is easy to learn.
3, it has 10 layers to filter oil. the final oil will be very clean.
4. High degree of automation
5. Simple structure and easy operation

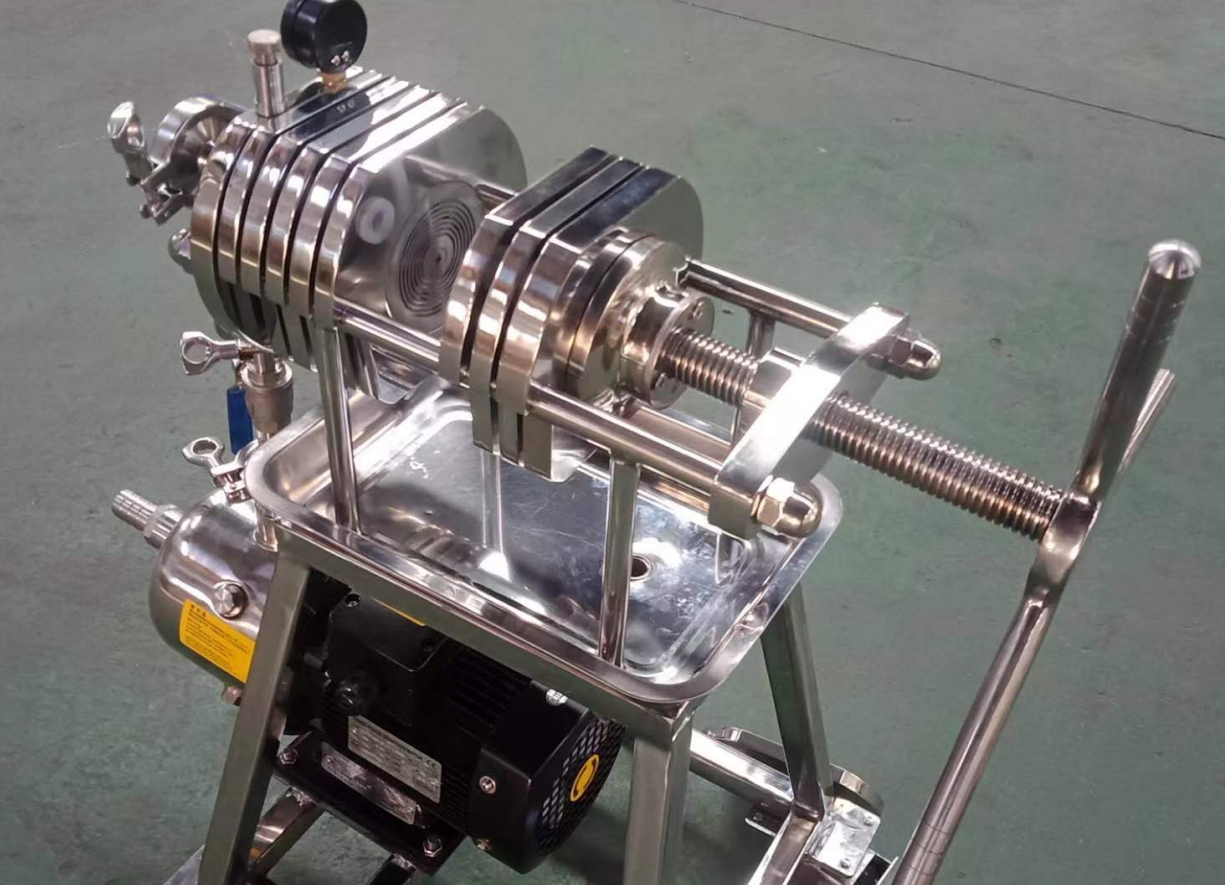

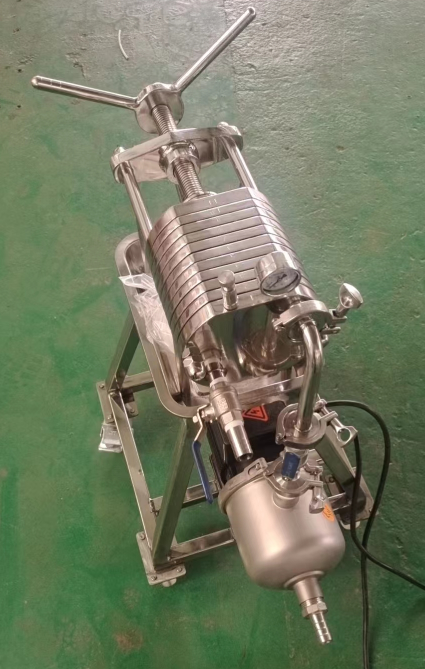

Details pictures:
Scope of application:
This product is widely used for solid-liquid separation in industries such as petroleum, chemical, pharmaceutical, sugar making, metallurgy, food, ceramics, starch, coal washing, soybean residue, distiller's grains, oil, desulfurization, sewage treatment, etc
